供应瑞士PMA电缆保护软管和接头 中国总代理 瑞士PMA电缆保护软管和接头PMA Conduit & fittings | ABB

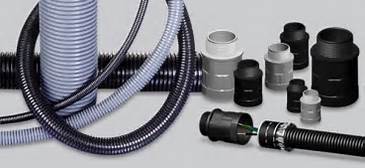

PMA Flexible cable protection systems
瑞士PMA软管及管接头
瑞士PMA比玛公司是设计生产高标准电缆保护系统的先驱，PMA比玛公司严格执行ISO9001质量体系，为产品质量提供了有效的保证。PMA比玛牌产品荣获美国、欧盟、英国等重要国家和地区相关部门的质量认证。产品销售网络遍布全球，已获得Bombardier庞巴迪、法国国营铁路局、德国铁路局和西门子等国际知名公司的认可。
瑞士PMA比玛公司生产的PMA系列电缆保护产品包括PMAFLEX系列软管和PMAFIX系列管接头以及ECONOMY系列软管和ECONOMY系列管接头。PMA软管有16个种类，规格从直径7mm到125mm，工作温度从零下200摄氏度至250摄氏度，标准色是黑色或灰色。
PMAEMC系列金属屏蔽网管和接头产品
PMA ROBOT系列 机器人产品
PMA Ex系列防爆产品
PMAJACK系列编织网管产品
PMA Smart Line系列轻巧型产品
PMAFIX Pro系列产品
PMA Conduits
PMA offers a large range of very different mono- and multlayer conduit types which fulfill high technical demands. Conduit sizes range from
Many conduits are specially approved, e.g. CSA,
UL Recognition, NFR, SNCF, DB etc.
PMAFLEX Pro
Brand new conduits for previously unattained performance levels.
PMAFLEX Multilayer
This range offers multilayer conduits for demanding technical applications and special requirements. The new PMAFLEX multilayer conduits (X-Series) are based upon advanced Multi-Layer-Extrusion technology allowing the manufacture of three layer corrugated conduits combining the best characteristics of different materials on inner and outer layers.
PMAFLEX
This line – best selling and very popular – offers more than 30 different conduit types for a variety
of cable protection applications.
PMA Divisible System
Divisible conduits for repairs, retrofit
and pre-loomed applications.
PMA Smart Line
Conduits with an excellent price/performance ratio for various applications.
PMA Ex-System
The first polyamide multilayer conduit for
explosion endangered zones 1/2 (gas) and 21/22 (dust) according to Atex 95.
Standard colours monolayer
Black and grey
Standard colours multilayer
Black and green: XVCS, XSOL
Black and blue: XPLC
Black and yellow: XESX
Black and red: XR90
PMA Cable protection systems
Comprehensive solutions for light rail traction vehicles
Underground railways
XPCS (PA12/PA6)
XPCSF (PA12/PA12)
POH (Polyolefin)
VAML (PA6)
Cable bundling and abrasion protection
F.66, C.66, L.66 (PA6)
F.PX, L.PX (Polyester)
G.PX (Polyester – open, self rewinding construction)
On the carriage roof, couplings and intercar jumper connections
XPCS (PA12/PA6)
XPCSF (PA12/PA12)
Under the carriages, on bogies
XPCS (PA12/PA6)
XPCSF (PA12/PA12)
PHT (PA6 elastomer)
Inside carriages and in passenger zone
VAM (PA6)
VAML (PA6)
IP68 and IP69K connectors with strain relief and metal thread
for dynamically loaded connections or increased ingress protection requirements between dry and wet areas e.g. for air conditioning systems, bogies, couplings, waggon transitions:
PMAFIX Pro
KNZ metric
PMAFIX
VNZ metric / PG
IP68 and IP69K connectors with female metal thread
e.g. for round pin plug connections or transitions to steel tubes:
PMAFIX Pro
KIS metric
PMAFIX
VIR metric / VIZR PG
IP68 and IP69K connectors with metal thread
for standard connections in outdoor applications (to cases, plates, grommets etc.) with increased ingress protection requirements e.g. for air conditioning systems, bogies, couplings, brake systems:
PMAFIX Pro
KNH (straight) metric
KBH (90°) metric
PMAFIX
VNV (straight) metric / PG
VBV (90°) metric / PG
IP68 special / positioning elbow adapter, nickel plated aluminium
for optimal wiring especially for dynamically loaded connections e.g. for air conditioning systems, bogies, couplings:
IP69K water impact protection WPS for IP68 connectors with NW10 to NW48 additional protection against high pressure water jets at the conduit/fitting connection e.g. for air conditioning systems, bogies, couplings, waggon transitions.
IP68 connectors with polyamide or metal thread, metric
or PG / IP69K connectors with polyamide or metal thread, metric
for increased ingress protection requirements e.g.
for passenger zone, driver‘s cab
IP66 connectors with polyamide thread, metric or PG
e.g. for passenger zone, driver‘s cab and general indoor
application areas
Tube clamps
LH Tube clamp, two pieces
SH Tube clamp, one-piece
Insert for tube clamps
GN Stain relief half-shell
GN Strain relief half-shell reduction
GN Slide half-shell
GS Grommet half shell
KS Grommet
TK Ball joint sleeve
TR Strain relief insert
KE Ball joint termination
Swivel base for tube clamps
Connectors
GG Flange straight
GO Flange 90° elbow
Accessories
SS / SV Abrasion protection sleeve
AS Conduit support sleeve
ES Internal conduit sleeve support
GH Tube clamp, one-piece
SGS Tube clamp
Conduits
PIS/PIH Conduit
XR90 Conduit
PUE Conduit
ESD Conduit (antistatic)
Light-duty (soft)
PEL Conduit
Medium-duty
PUE Conduit
PCL Conduit
PCSL Conduit
PLR Conduit
POS Conduit
PIS/PIH Conduit
VAML Conduit
CYL Conduit
CYF Conduit
ESD Conduit (antistatic)
PVD Conduit
R90 Conduit
PEL Conduit
Medium-duty
PUE Conduit
PCL Conduit
PCSL Conduit
PLR Conduit
POS Conduit
PIS/PIH Conduit
VAML Conduit
CYL Conduit
CYF Conduit
ESD Conduit (antistatic)
PVD Conduit
PCS Conduit
VCS Conduit
VAM Conduit
CYFH Conduit
VOH Conduit
Light-duty
PSX Conduit
Medium-duty
PHT Conduit
PLU Conduit
POH Conduit
PHT Conduit
CUS Conduit
PUS Conduit
VUS Conduit
Medium-duty
XR90 Conduit
XPCL Conduit
XSOL Conduit
XVCS1H Conduit
XVCS2H Conduit
XPCSF Conduit
XPCS Conduit
Machine building and plant construction
PACOF Conduit
PPCOF Conduit
Light-duty
LLPO Conduit
Medium-duty
LLPA Conduit
LLPF Conduit
Metric threads
KNH straight
KNZ straight, strain relief
KWZ 90° elbow, strain relief
KAH 45° elbow
KBH 90° curved elbow
UN polyamide threads
KIHG straight
Metric metal threads
KIS straight
Sealing and locking element
KNH2 Sealing and locking element
Metric threads
VN straight
VNDZ / VNZ straight
with strain relief
VA 45° elbow
VB 90° curved elbow
VW 90° curved
UN straight (UL Listed)
UA 45° elbow (UL Listed)
UW 90° elbow (UL Listed)
GAS threads
VN straight
VA 45° elbow
VW 90° elbow
Flange
VO Flange
PG threads
VN straight
VNDZ / VNZ straight
with strain relief
VA 45° elbow
VB 90° curved elbow
VW 90° elbow
NPT threads
VN straight
VA 45° elbow
VW 90° elbow
UN straight (UL Listed)
UA 45° elbow (UL Listed)
UW 90° elbow (UL Listed)
Metric threads
VNV straight
VNZ straight with strain relief
VBV 90° curved elbow
VWV 90° elbow
VNZ straight with strain relief and Pflitsch sealing insert
VWZ 90° elbow with strain relief and Pflitsch sealing insert
PG threads
VNV straight
VNZ straight with strain relief
VBV 90° curved elbow
VWV 90° elbow
VNZ straight with strain relief and Pflitsch sealing insert
NPT threads
VNV straight
etric threads
SNV straight swivel metric
SBV 90° curved elbow, metric
PG threads
SBV 90° curved elbow, PG
NPT threads
SNV-NPT
SNIV-NPT
SBV-NPT
SBIV-NPT
Polyamide threads
VI metric
VIR/FIL PG
VI UNEF for AMP CPC series
VI UNEF for Souriau
VI UN for MIL-C5015
FIL fine metric, transparent
metal threads
VIR metric
VIZR PG
Pieces and adapter
VY Y Piece
VT T Piece
PMAGRIP IP68/IP69K
GGV Flange straight
GOV Flange 90° elbow
PMAGRIP IP65
GG Flange straight
GO Flange 90° elbow
GG Connector straight
with locking clamps,
metric/PG thread
GI Connector straight
with locking clamps,
metric female thread
PMAFLEX JUMBO Conduits
PCL Conduit
VOH Conduit
PIH Conduit
PUE Conduit
PCS Conduit
VCS Conduit
CYL Conduit
PMA JUMBO Accessories
SGS Tube clamps
SGO3 Conduit seal rings
FGO4 Flange sealings
FGO4/01 Flange sealings
Metric threads
LND straight
LAD 45° elbow
LWD 90° elbow
PG threads
LND straight
LAD 45° elbow
LWD 90° elbow
Smart Line Conduits
LLPA Conduit
LLPO Conduit
LLPF Conduit
Metric metal threads
VEMV
VEMV-SW positionable
PG metal threads
VEMV
UN female threads
VIMV, MIL-C5015
VIMV, MIL-C26482G
Adapters, metric threads
HFAK
Metric threads
KEZ
KEZ Pflitsch
VEZ
VEZ Pflitsch
Screening Braids
F.CK Screening braid
F.CU Screening braid
F.HY Hybrid screening braid
Hexagonal lock nuts
MM/EMC, metric
MM/EMC, PG
Connectors
RER/REV Braid termination
AP/PMA Mounting ring + jubilee clip
MREIR Connector for plastic braids, metal female thread
BREIR Connector for plastic braids, polyamide female thread
Plastic braided hoses
F.66 Braided hose
C.66 Braided hose
L.66 Braided hose
F.PX Braided hose
L.PX Braided hose
G.PX Open braided hose
metal braided hoses
F.304 Stainless steel braided hose
Connectors and adapters
MONK metal connector for overbraided conduits
VEMD Connector for overbraided conduits
VEMD-RER Adapter for overbraide conduits
Tools
HSG Hot cutting tool
Band-IT Clamping tool
Conduit
JFBD nylon conduit
Fitting
JENQ Stainless Steel fitting
Fitting
JKNH nylon fitting
P-Clip
JSGB Stainless Steel P-Clip
Positioning adapters, metal
SCA Positioning adapter, metric
SCA Positioning adapter, PG
Swivel adapters, metal
SWA Adapter, metric
SWA Adapter, PG
Adapters + fittings, metal
MPNK Fitting, metric
Connections
VSG Connection splice for flexible conduits
VNR-REM Connection to solid metal tube, metric
VNR-RE Connection to solid metal tube, PG
SPV Junction box
Conduit connections
BOO Conduit connection 90° with flange
CUS Conduit (UL listed)
PUS Conduit (UL listed)
VUS Conduit (UL listed)
Metric threads
UN straight (UL Listed)
UA 45° elbow (UL Listed)
UW 90° elbow (UL Listed)
NPT threads
UN straight (UL Listed)
UA 45° elbow (UL Listed)
UW 90° elbow (UL Listed)
